SM8T系列(SM8S加強版)

東沃電子SM8T系列汽車級TVS二極管,符合AEC-Q101認證標準,并可通過ISO 7637-2 5a/5b及ISO 16750拋負載測試要求;型號齊全,免費方案、選型、測試、樣品!

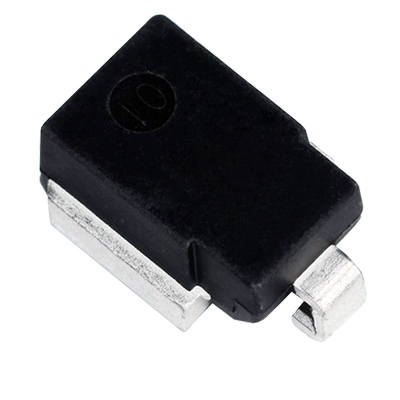

封裝形式:DO-218AB
脈沖功率:6600W
工作電壓:16V-43V
脈沖電流:95.0A-254.00A
響應時間:<1.0PS

產品詳情

● Glass Passivated Junction technology

● TJ = 175 °C capability suitable for high reliability and automotive requirement

● 6600W peak pulse power capability with a 10/1000 μs waveform, repetitive rate (duty cycle):0.01 %

● Meets ISO 7637-2 5a/5b and ISO 16750-2 5a/5b load dump test (varied by test condition)

● AEC-Q101 qualified

● Low leakage current

● Low forward voltage drop for uni-directional polarity

● Both available in uni-directional and bi-directional polarity

● Excellent clamping capability

● Very fast response time

● Meets MSL level 1, per J-STD-020, LF maximum peak of 245 °C


型號 圖片 封裝 VBR.MIN(V) VBR.MAX(V) IT(mA) IR(μA) VRWM(V) IPP(A) VC(V) 下載

SM8T16A/SM8T16CA

DO-218AB

17.80

19.70

5.0

10

16

254.00

26.0

SM8T17A/SM8T17CA

DO-218AB

18.90

20.90

5.0

10

17

239.00

27.6

SM8T18A/SM8T18CA

DO-218AB

20.00

22.10

5.0

10

18

226.00

29.2

SM8T20A/SM8T20CA

DO-218AB

22.20

24.50

5.0

10

20

204.00

32.4

SM8T22A/SM8T22CA

DO-218AB

24.40

26.90

5.0

10

22

186.00

35.5

SM8T24A/SM8T24CA

DO-218AB

26.70

29.50

5.0

10

24

170.00

38.9

SM8T26A/SM8T26CA

DO-218AB

28.90

31.90

5.0

10

26

157.00

42.1

SM8T28A/SM8T28CA

DO-218AB

31.10

34.40

5.0

10

28

145.00

45.4

SM8T30A/SM8T30CA

DO-218AB

33.30

36.80

5.0

10

30

136.00

48.4

SM8T33A/SM8T33CA

DO-218AB

36.70

40.60

5.0

10

33

124.00

53.3

SM8T36A/SM8T36CA

DO-218AB

40.00

44.20

5.0

10

36

114.00

58.1

SM8T40A/SM8T40CA

DO-218AB

44.40

49.10

5.0

10

40

102.00

64.5

SM8T43A/SM8T43CA

DO-218AB

47.80

52.80

5.0

10

43

95.00

69.4
